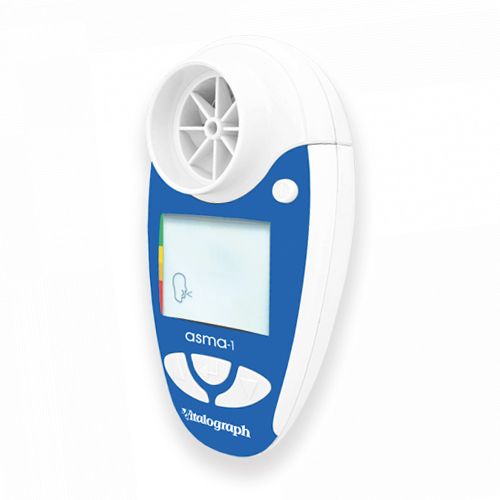

Vitalograph asma-1 Asthma Monitor
Vitalograph asma-1 Asthma Monitor
The Vitalograph asma-1 is a lightweight home use electronic respiratory monitor that measures PEF and FEV1. It offers greater accuracy than mechanical peak flow meters and eliminates the need for paper record cards.
Product includes:
Carry Pouch
Instructions for use
2 x AAA Batteries
Plastic mouthpiece for single patient use
Features:
Measures FEV1 and PEF
Electronic record – no need for record cards
Set unique ‘personal best’ zones for test subjects
Automatically stores best values in a test session
Quality of blow indicator
600 test memory
Suitable for use in clinic with Bacterial Viral Filters (BVF)Large, easy to read display
Specifications:
Model: 4000
Dimensions: 10.9cm (L) x 6.3cm (W) x 4.2cm (H)
Flow Detection Principal: Stator rotor
Accuracy: Better than ± 3%
Back Pressure: Less than 0.15kPa/L/second @ 14L/s
Measurement Range: FEV1: 0 – 9.99 L BTPS
Maximum Test Duration: 6 seconds
Power Supply: 3V (2 x 1.5V AAA batteries)
Battery Life: 3 months of use, 3 tests per day
Quality Check: Slow start of test (Vext>5%) or a cough detected in the first second
Performance Standards & Guidelines: ATS/ERS 2019, ISO 23747:2015, ISO 26782:2009
Auto Power Down Time: 2 minutes
Internal Reference:
MD05973
Lead Time:
1 Working Days
