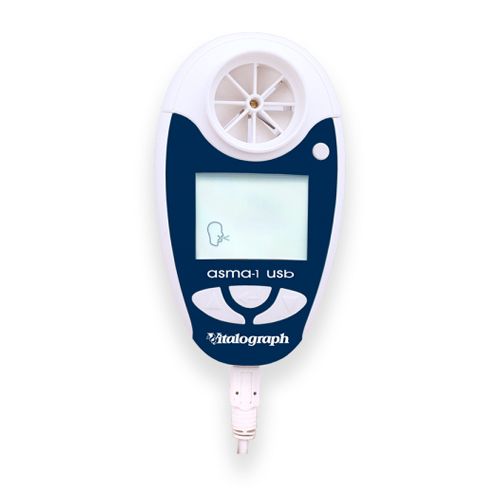

Vitalograph asma-1 USB Electronic Respiratory Monitor
Vitalograph asma-1 USB Asthma Monitor
The Vitalograph asma-1 is a lightweight home use electronic respiratory monitor that measures PEF and FEV1. It offers greater accuracy than mechanical peak flow meters and eliminates the need for paper record cards. Links easily to other devices by USB for reporting.
Product includes:
Carry Pouch
Instructions for use
USB Cable
2 x AAA Batteries
Plastic mouthpiece for single patient use
Vitalograph Reports Software
Features:
Measures FEV1 and PEF
Displays % of personal best FEV1
Electronic record – no need for record cards
Set unique ‘personal best’ zones for test subjects
Automatically stores best values in a test session
Quality of blow indicator
600 test memory
Suitable for use in clinic with Bacterial Viral Filters (BVF)
Large, easy to read display
Specifications:
Model: 4000
Dimensions: 10.9cm (L) x 6.3cm (W) x 4.2cm (H)
Flow Detection Principal: Stator rotor
Accuracy: Better than ± 3% (FEV1), ± 10% (PEF)
Back Pressure: Less than 0.15kPa/L/second @ 14L/s
Measurement Range: PEF: 25 – 840 L/min BTPS FEV1: 0 – 9.99 L BTPS
Maximum Test Duration: 1 second
Power Supply: 3V (2 x 1.5V AAA batteries)
Battery Life: 3 months of use, 3 tests per day
Quality Check: Time to Peak Flow >120ms or a cough detected in the first second
Performance Standards & Guidelines: ATS/ERS 2019, ISO 23747:2015, ISO 26782:2009
Communications: USB2.0/3.0
PC Requirements: Windows® 7, Windows® 8 or Windows® 10
Auto Power Down Time: 2 minutes
Vitalograph Reports Software generates PDF's to PC's, containing:
Information presented in tables and graphs
Customizable report headers
Ability to add comments to the report
Subject ID and name fields
Age, height, gender, and weight fields optional
Internal Reference:
MD05974
Lead Time:
11 Working Days
