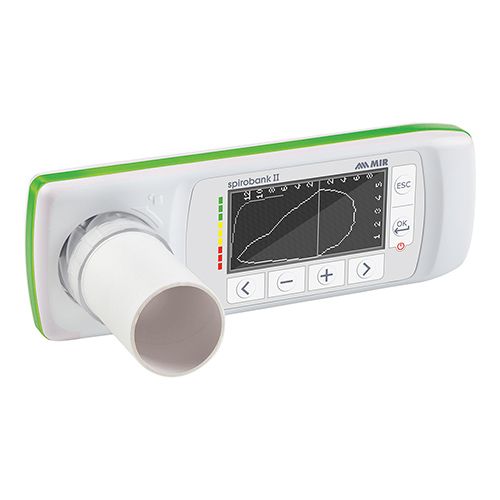

Spirobank II Basic

Spirobank II Basic

The Spirobank II Basic Spirometer is a surgery essential and easy-to-use, ideal for family doctors, occupational medicine, screening. It includes real-time tests also available on PC, via USB. It features long-life rechargeable battery and backlight high-resolution display, on screen results and curves preview and traffic lights for immediate test interpretation.

REAL-TIME TEST
Spirometry: FVC, VC, IVC, PRE/POST Bronchodilator comparison.

CARRY EVERYWHERE
HR Display, long battery life, large internal storage, carrying case included.

PC CONNECTION
Real-Time test on PC screen, connect with your EHR/EMR, back-up internal memory and much more.

COMPLIANCE WITH ATS/ERS 2019
And other Standards including ISO 26782 (for Spirometry), ISO 23747 (for PEF), and more.

ADDITIONAL PREVENTION DURING COVID-19
MIR devices are compatible with the use of disposable in-line filters as recommended by the ERS.

PREDICTED SETS AND PREDICTED VALUES
Large Selection of Predicted Sets (including GLI) and Predicted Values (including comparison %Pred, Z-score and LLN) in PC-mode.

EHR CONNECTIVITY
Via PC, integration with patient database on your EHR/EMR (in HL7, GDT).

DESIGNED FOR GENERAL PRACTITIONERS
Easy-to-use, disposable turbine available (no need for cleaning facilities to perform a spirometry test).

Specifications:

Power supply: Rechargeable Lithium-Ion 3.7V, 1100mAh
Connectivity: USB 2.0
Display Type: LCD monochrome, 160 × 80 pixel
Keyboard: Membrane keyboard with 6 keys
Flow sensor: Bi-directional digital turbine
Flow range: ±16L/s
Flow accuracy: ±5% or 200 mL/s
Dynamic resistance: <0.5 cm H2O/L/s
Temperature sensor: Semiconductor (0-45°C)
Test available: FVC, VC, IVC, POST
Measured parameters: ELA, ERV, EVOL, FEF2575, FET, FEV1, FVC, IVC, PEF, VC
Memory capacity: 10,000 tests

Contents:

Carrying case
USB cable
Noseclip
PC Software license
