Spirobank II Advanced

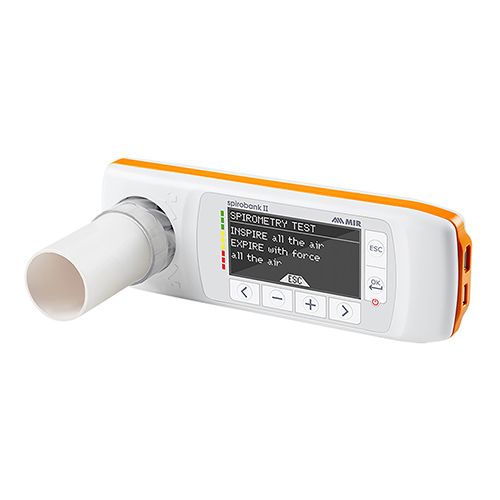

Spirobank II Advanced Handheld Spirometer

HANDHELD, STAND-ALONE AND PC-BASED SPIROMETER, WITH OXIMETRY OPTION

The Spirobank II Advanced Handheld Spirometer is a complete Spirometer with Oximetry option, designed for all respiratory therapists. It includes real-time tests also available on PC, via Bluetooth and USB, long-life rechargeable battery, traffic lights on display for immediate test interpretation and SpO2 and pulse rate (optional) directly on the display (including plethysmographic curve).

Specifications:

Connectivity: Bluetooth® 2.1, USB 2.0
Display Type: LCD monochrome, 160 × 80 pixel
Keyboard: Membrane keyboard with 6 keys
Flow sensor: Bi-directional digital turbine
Flow range: ±16L/s
Volume Accuracy: ±2.5% or 50 mL
Flow accuracy: ±5% or 200 mL/s
Dynamic resistance: <0.5 cm H2O/L/s
Temperature sensor: Semiconductor (0-45°C)
Test available: FVC, VC, IVC, MVV, PRE-POST
Measured parameters: DTPEF, ELA, ERV, EVOL, FEF25-75%, FEF25%, FEF50%, FEF75-85%, FEF75%, FET, FEV0.5, FEV0.5/FVC%, FEV0.75, FEV0.75/FVC%, FEV1, FEV1/FEV6%, FEV1/FVC%, FEV1/VC%, FEV2, FEV2/FVC%, FEV3, FEV3/FVC%, FEV6, FIF25%, FIF50%, FIF75%, FIV1, FIV1/FIVC%, FIVC, FVC, IC, IRV, IVC, MVV, PEF, R50, RR, te, ti, ti/t-tot, TV, TV/ti, VC, VE, Vext
Memory: 10,000 readings

Contents:

Carrying case
USB cable
Noseclip
PC Software license

With Oximetry Option:
Finger Probe
